PCIe 4.0 x4 M.2 | 19-Phase Power | Ryzen 7000/8000/9000 Support
Engineered for builders who demand stunning aesthetics and uncompromising performance, the JGINYUE B650M Snow Dream combines next-gen AM5 power with a sleek ice-white design — perfect for high-end gaming PCs, streaming rigs, and custom ARGB builds.
Built for the Future of Ryzen Performance
Compatible with:
-
AMD Ryzen™ 7000 Series
-
AMD Ryzen™ 8000 Series
-
AMD Ryzen™ 9000 Series
Including top gaming CPUs like 9700X, 9900X & 7800X3D
Advanced AMD B650 chipset delivers blazing speed and reliable architecture for next-generation gaming.
Ultra-Fast DDR5 Memory Support
-
2 × DDR5 DIMM slots
-
Up to 96GB dual-channel capacity
-
Speeds from 4800 to 7000+ MHz (OC)
Get smoother frame rates, faster loading times, and peak responsiveness when paired with top-tier GPUs.
Fast Storage & Expansion
Designed for high-performance PCIe 4.0 components:
| Expansion | Support |
|---|---|
| M.2 Slots | 3 × PCIe 4.0 x4 |
| SATA | 2 × SATA 3.0 |
| PCIe Slots | 1 × PCIe 4.0 x16 + 1 × PCIe 4.0 x16 (x4 speed) |
Perfect for NVMe SSDs, powerful graphics cards, and future upgrades.
Advanced ARGB Control
-
4 × ARGB 5V 3-pin headers
-
MCU independent lighting controller
Create full synchronized lighting setups for fans, AIO coolers and GPU shrouds — maximize visual customization!
Strong Power Delivery for Elite Gaming
-
19-phase power design
Ensures stable CPU performance during overclocking and demanding gaming sessions.
High-Speed Networking & Connectivity
-
2.5G Ethernet (Realtek RTL8125BG)
-
Wi-Fi module support (PCIe protocol)
-
USB 3.2 & USB 2.0 ports + Type-C connectivity
Front-panel ready with Type-E header — adds a 5Gbps Type-C port to your case I/O.
Premium Audio & Display Outputs
-
Realtek ALC897 audio chipset
-
HDMI + DisplayPort outputs for multi-monitor setups
Great clarity for gaming, calls, and streaming.

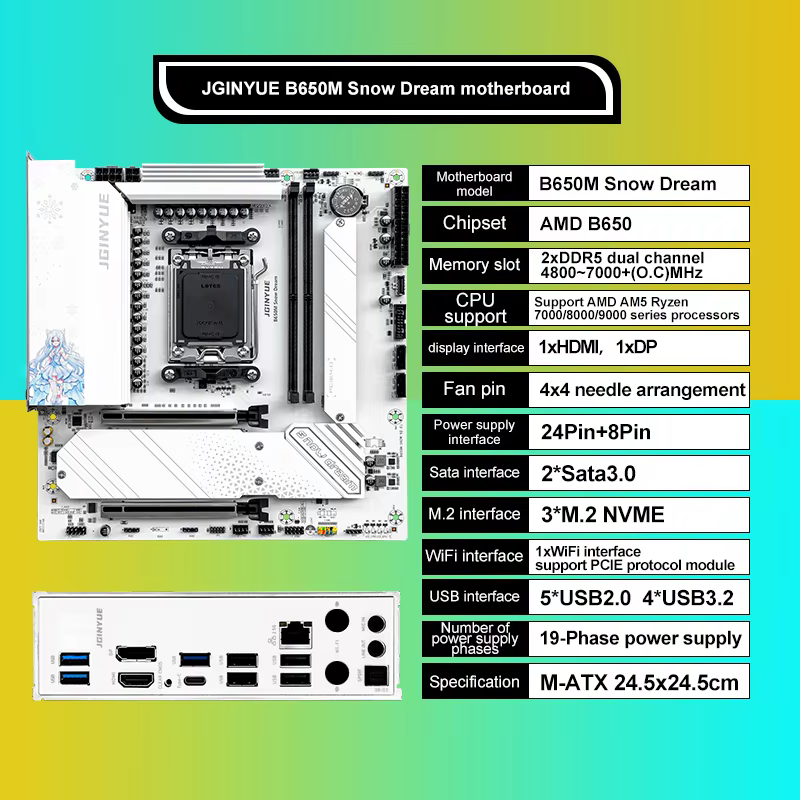

Key Specifications
| Feature | Details |
|---|---|

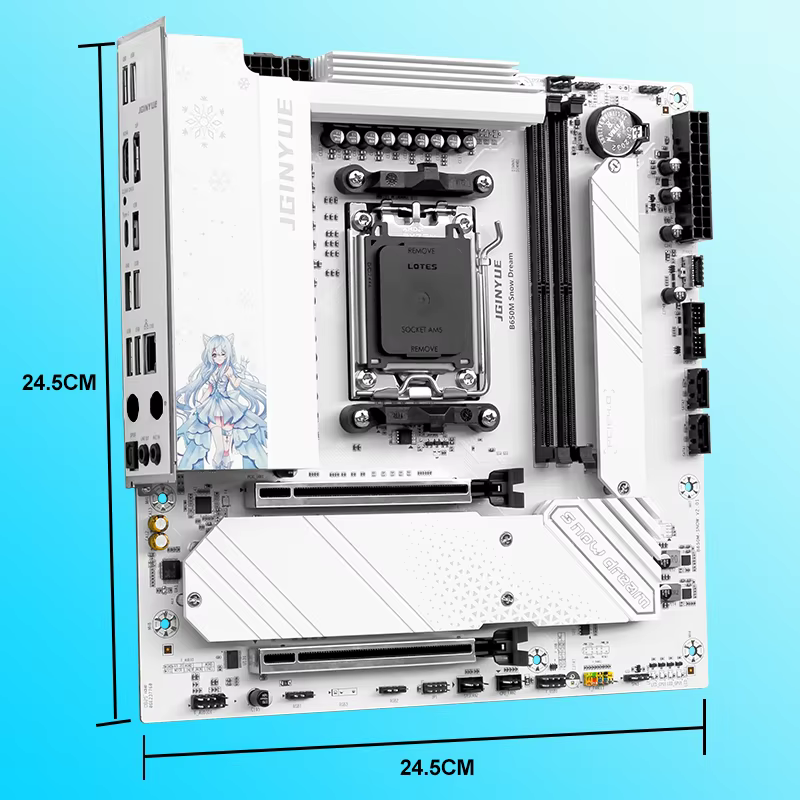

| Form Factor | Micro-ATX – 24.5 × 24.5 cm |
| PSU Support | Standard ATX |
| Fan Headers | 4 × 4-pin |
| Diagnostic Features | Debug light + CMOS reset button |
| Side Color Theme | Snow-White Design |
Perfect For:
✔ High-performance gaming builds
✔ ARGB showcase PCs
✔ Overclocking enthusiasts
✔ Compact Micro-ATX setups
✔ Ryzen 3D V-Cache optimized gaming builds
Level up your gaming PC with a motherboard that performs as powerfully as it looks.
The Snow Dream is your foundation for a true next-gen white-themed build.
